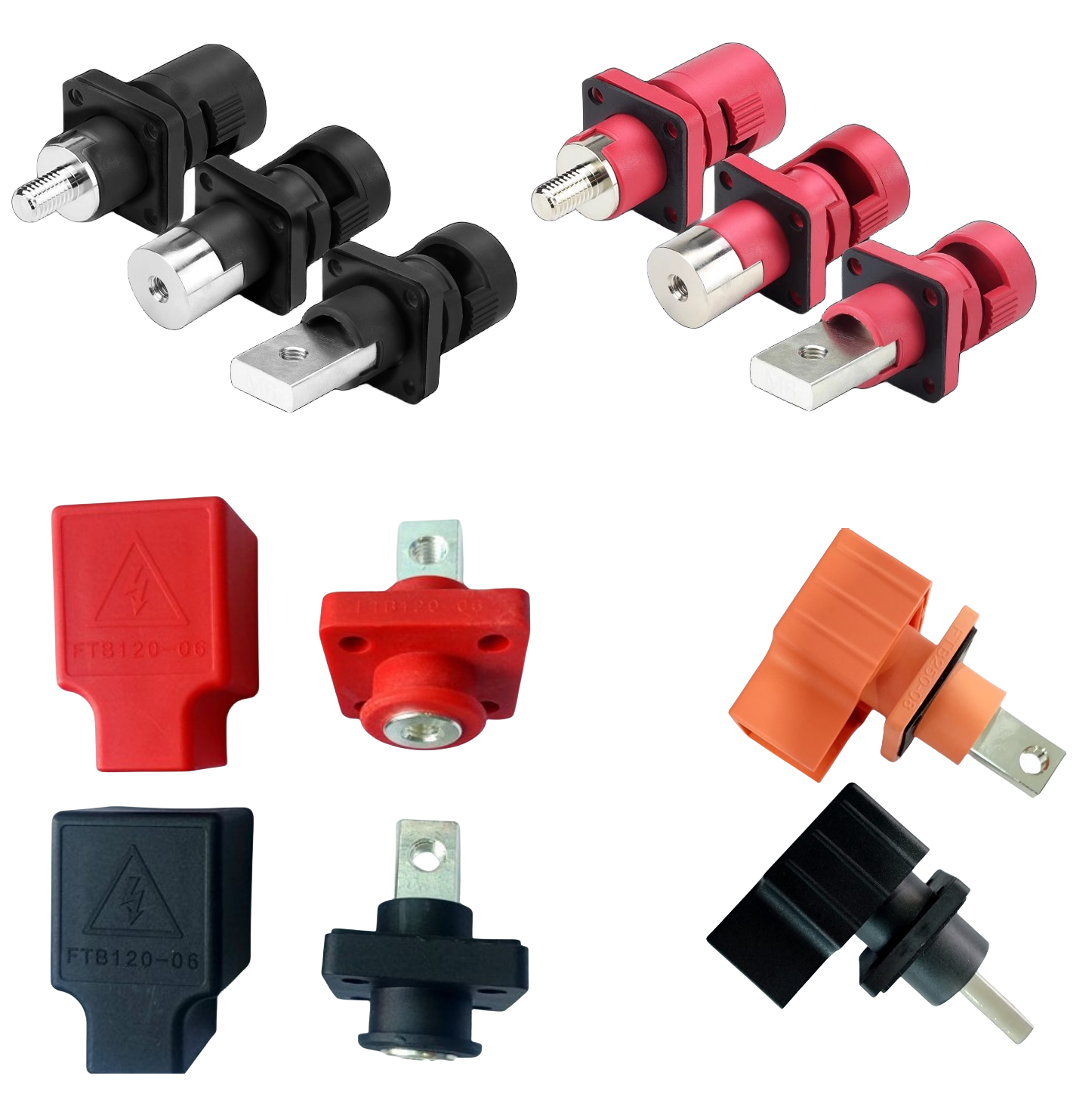

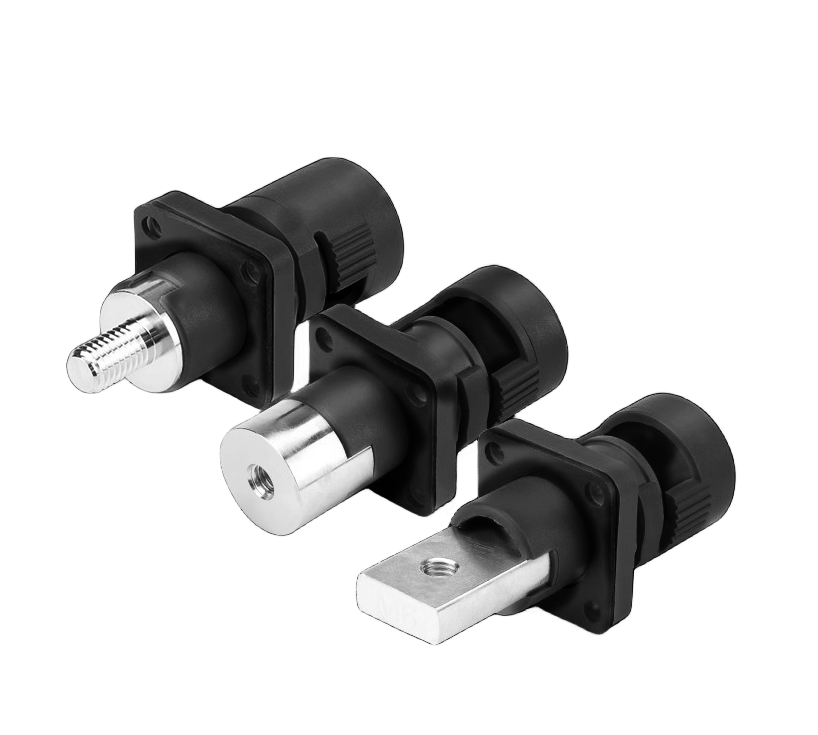

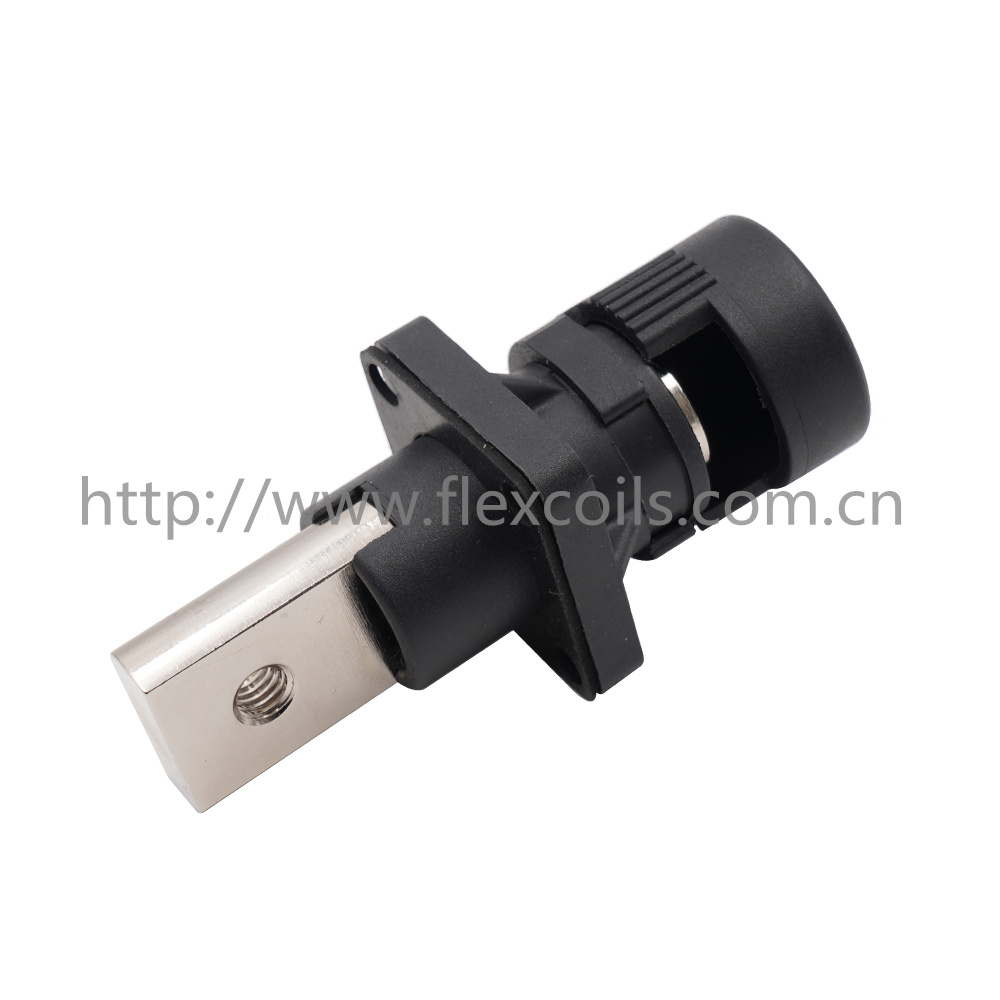

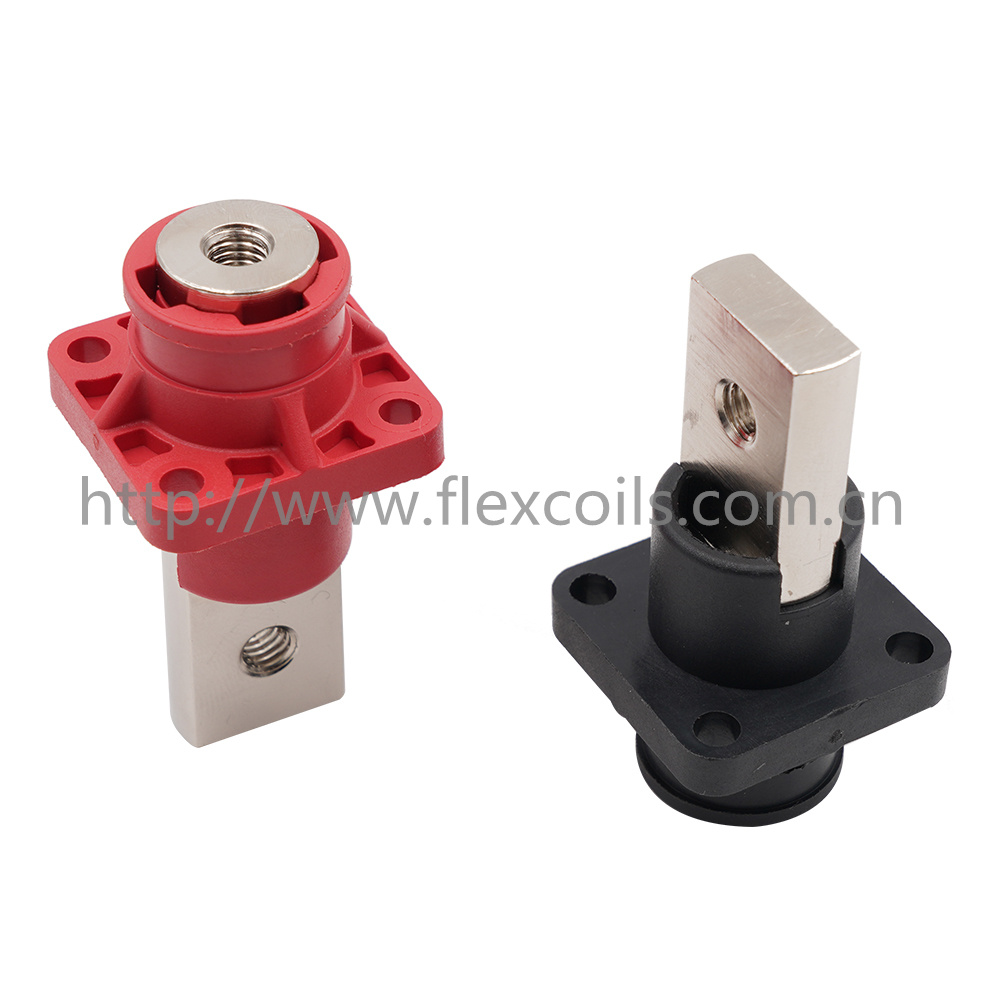

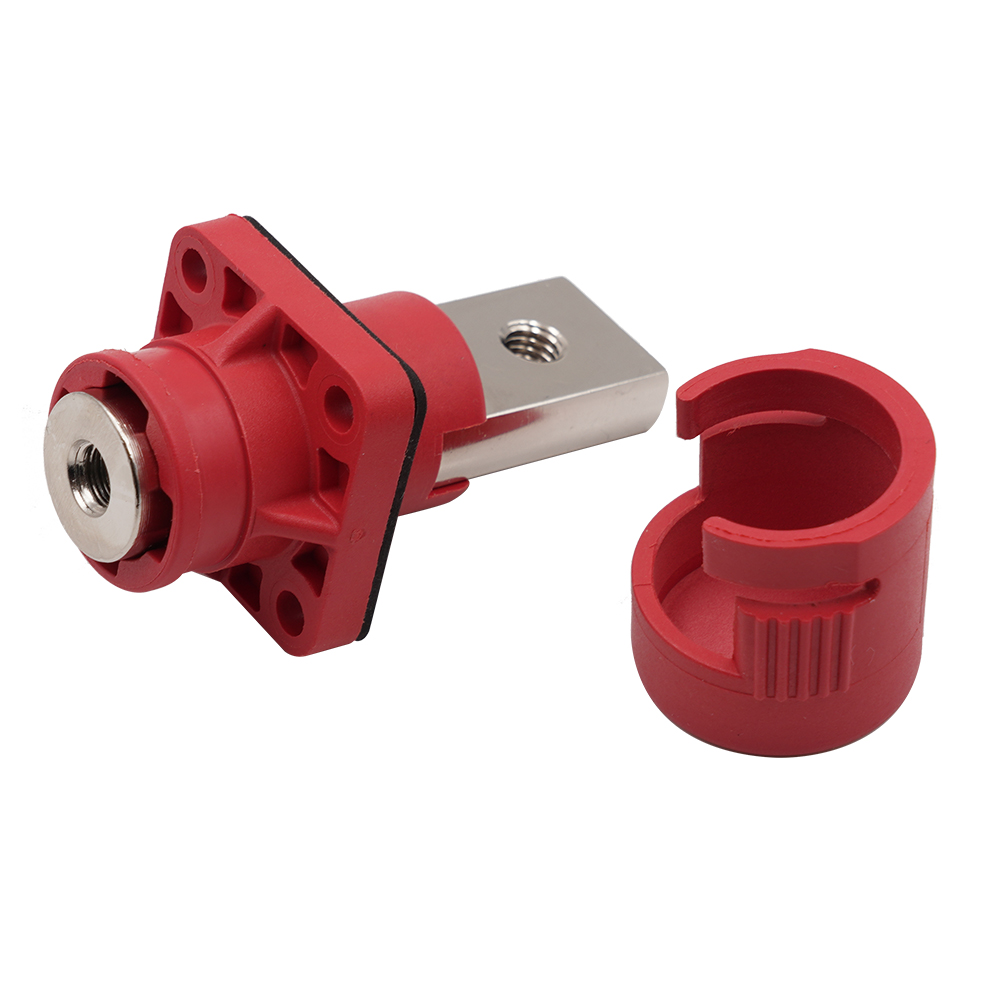

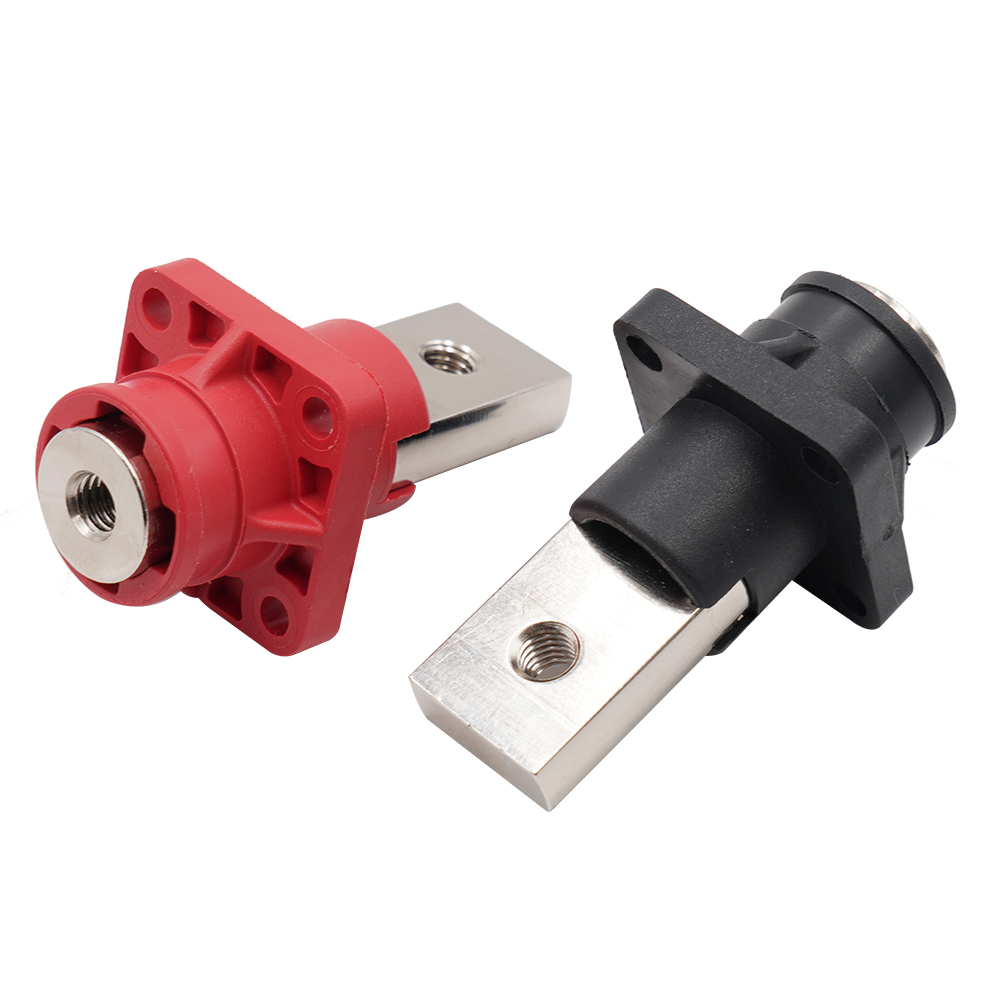

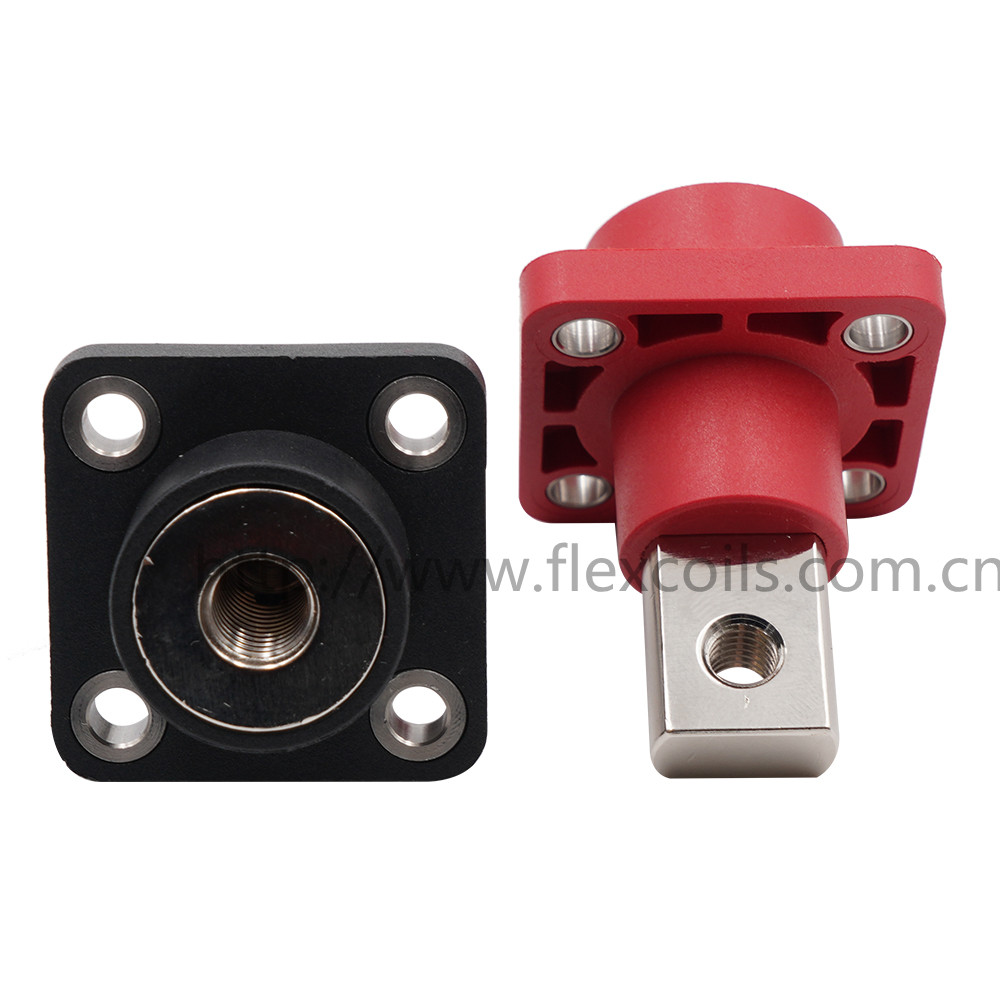

ZL Series Through-Wall Terminals – IP67 Bulkhead Power Terminals (120A–400A)

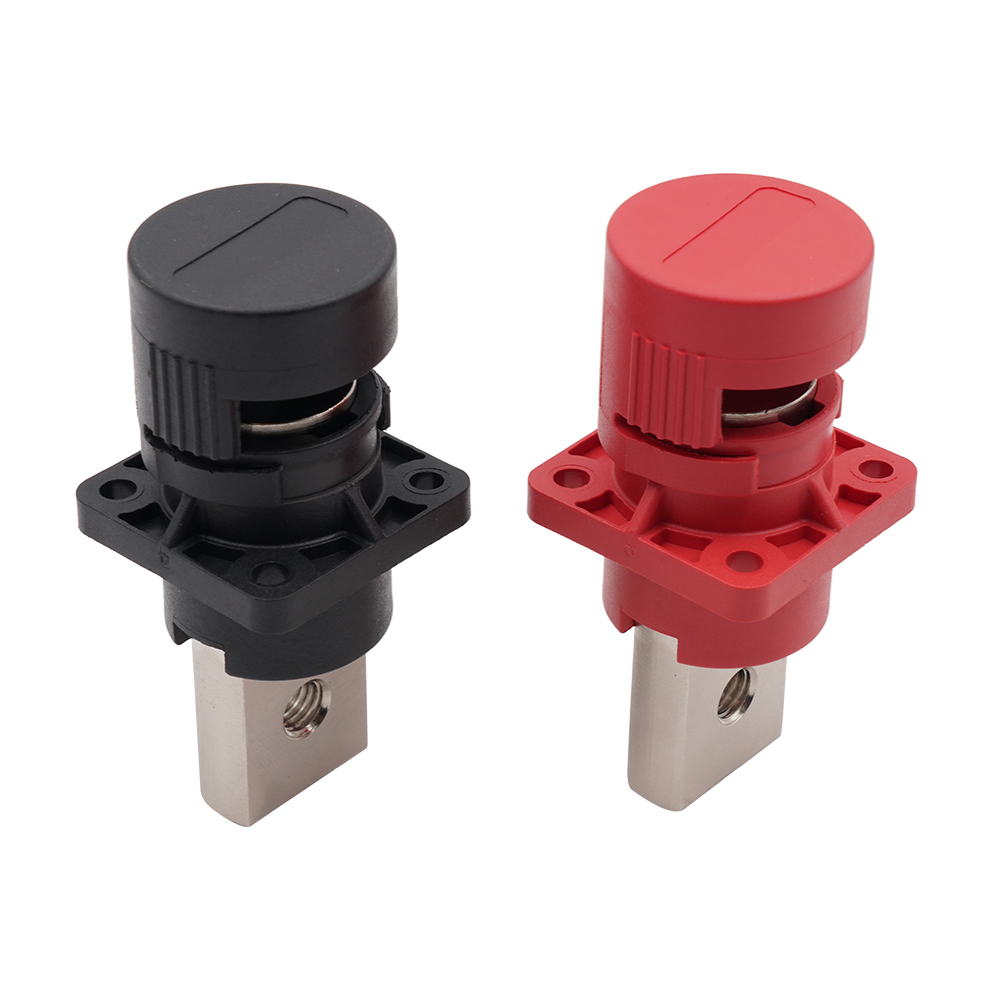

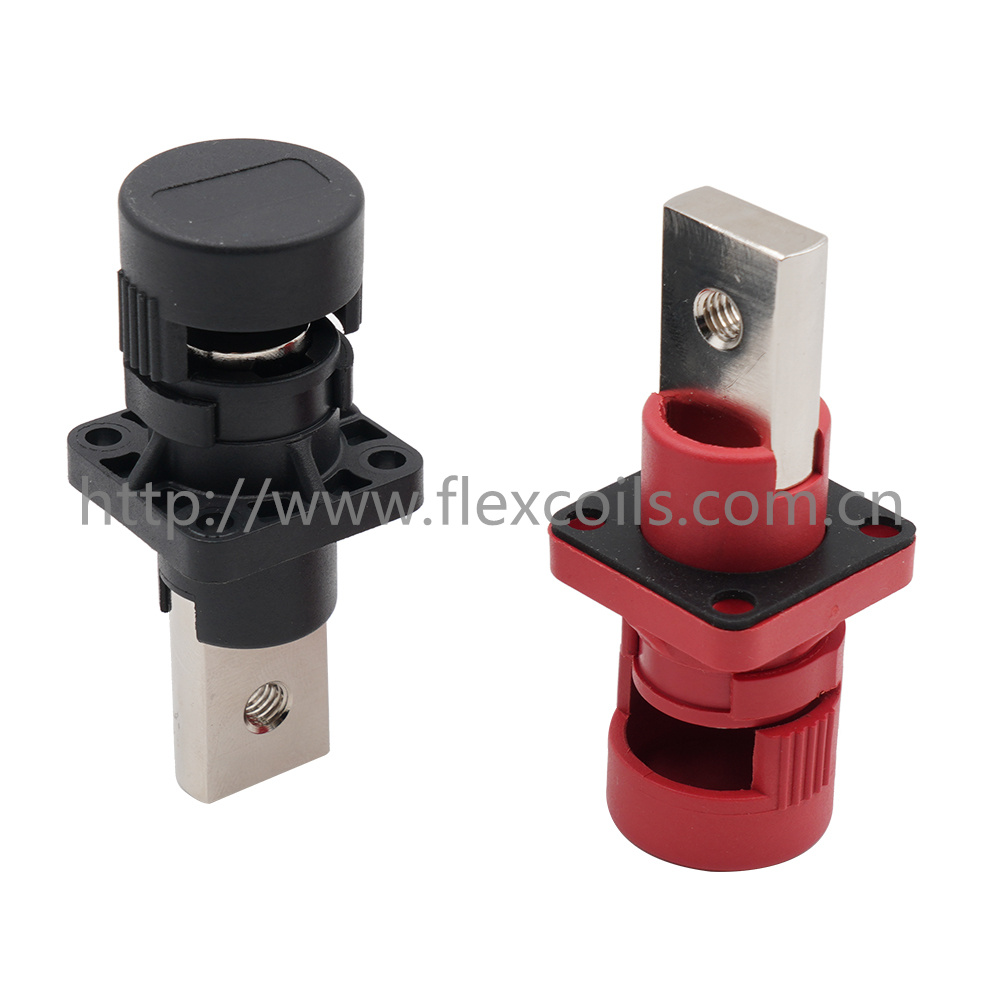

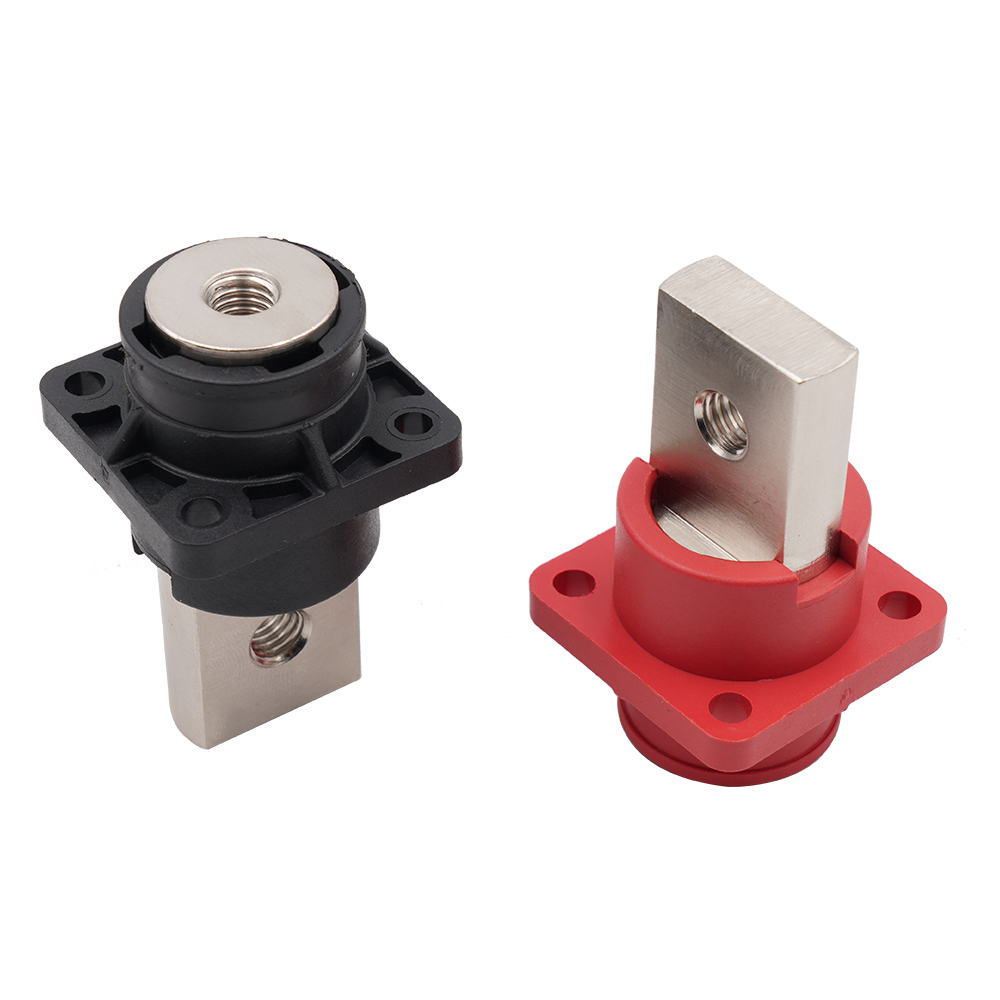

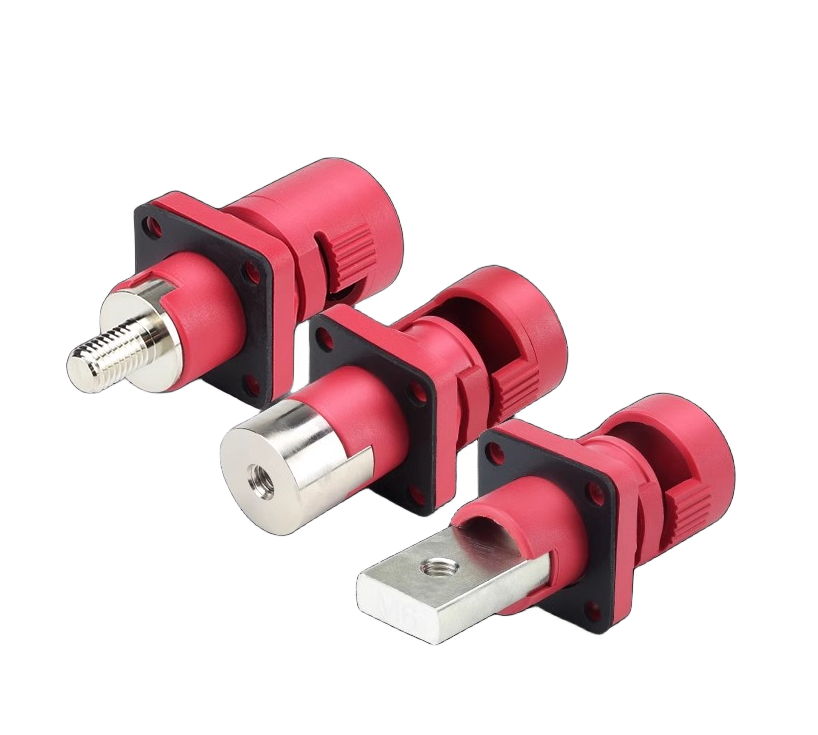

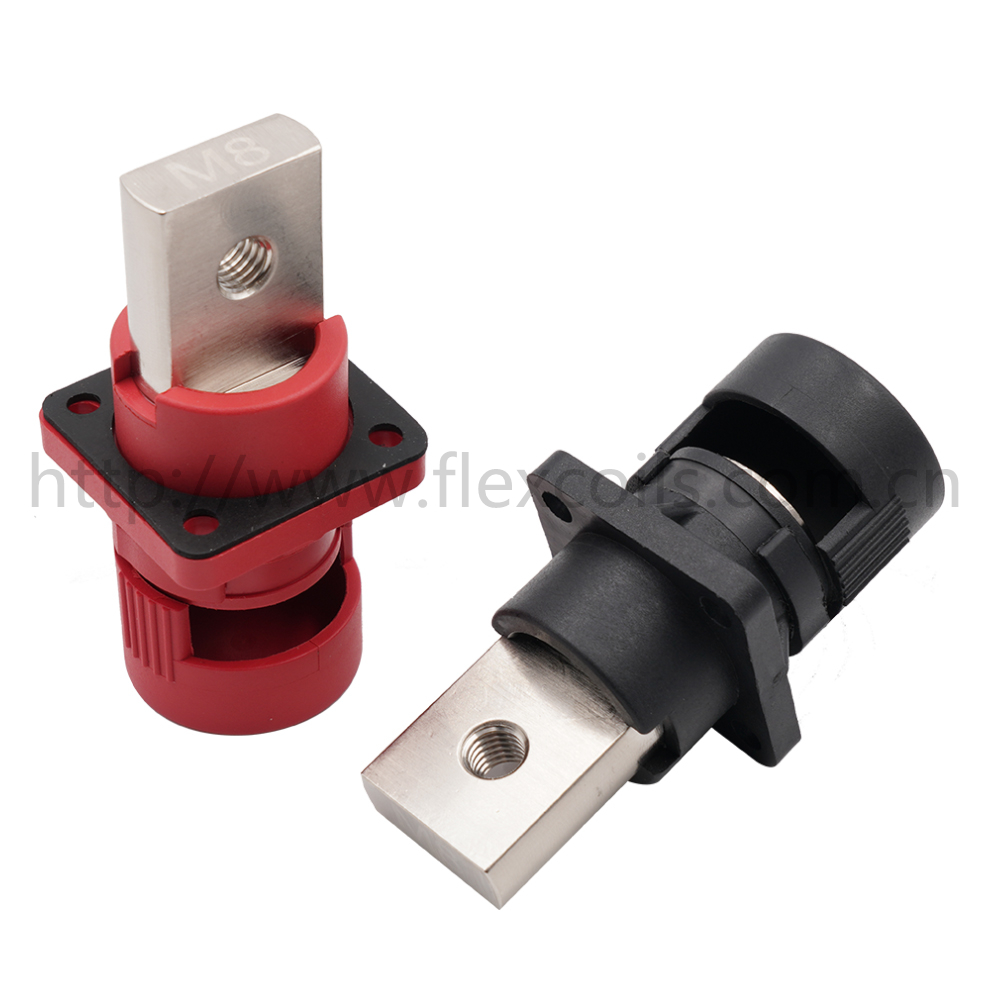

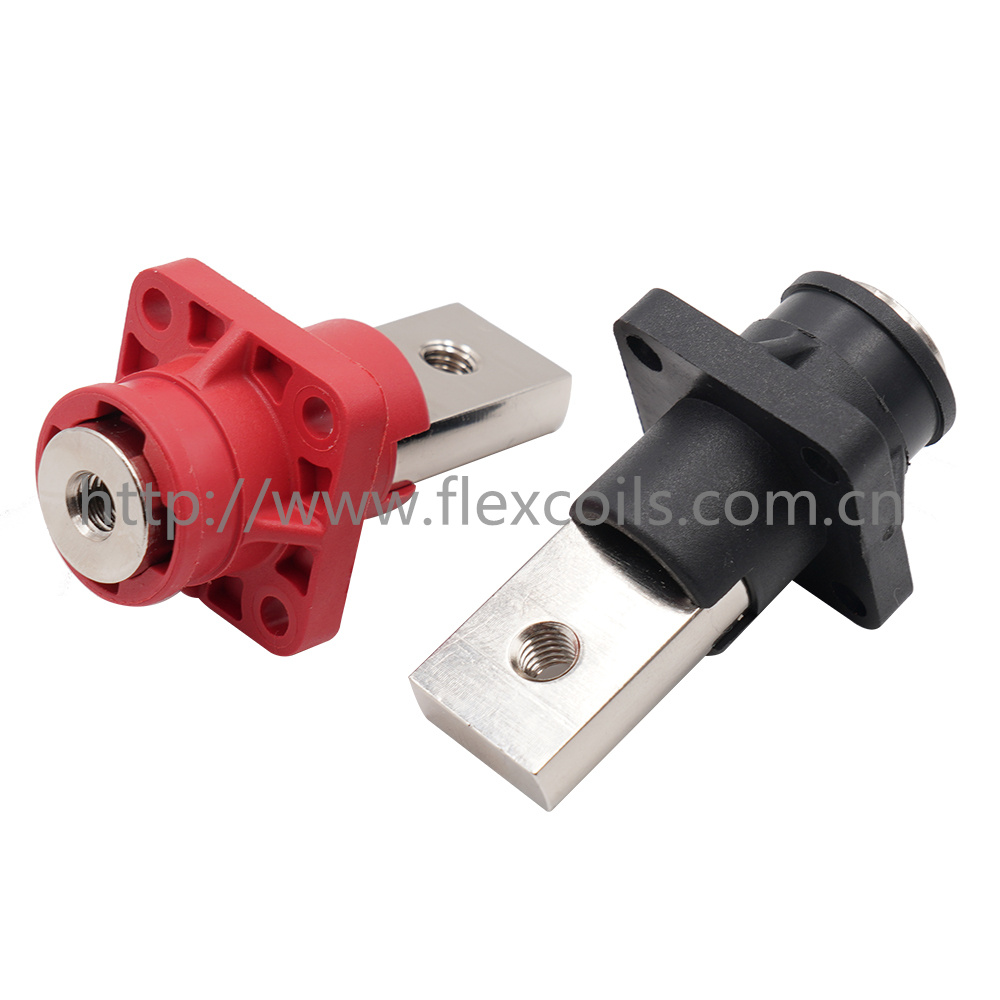

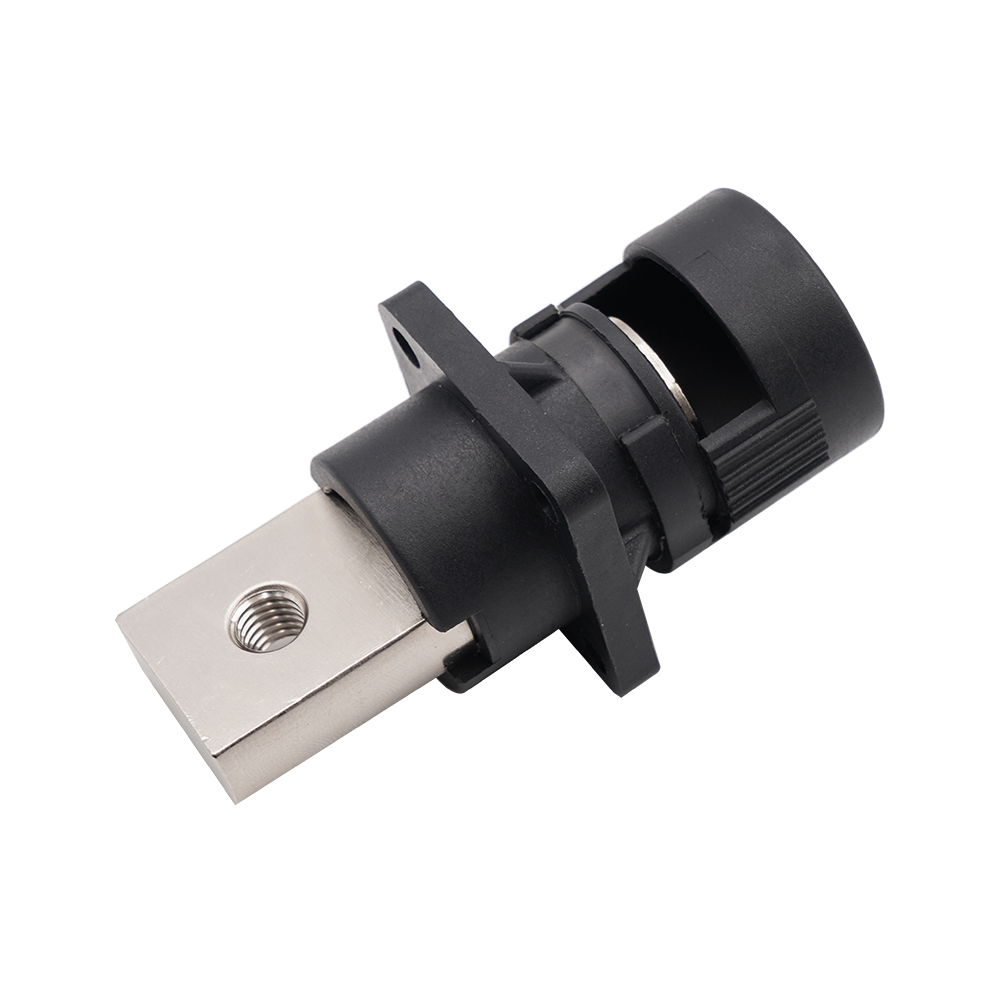

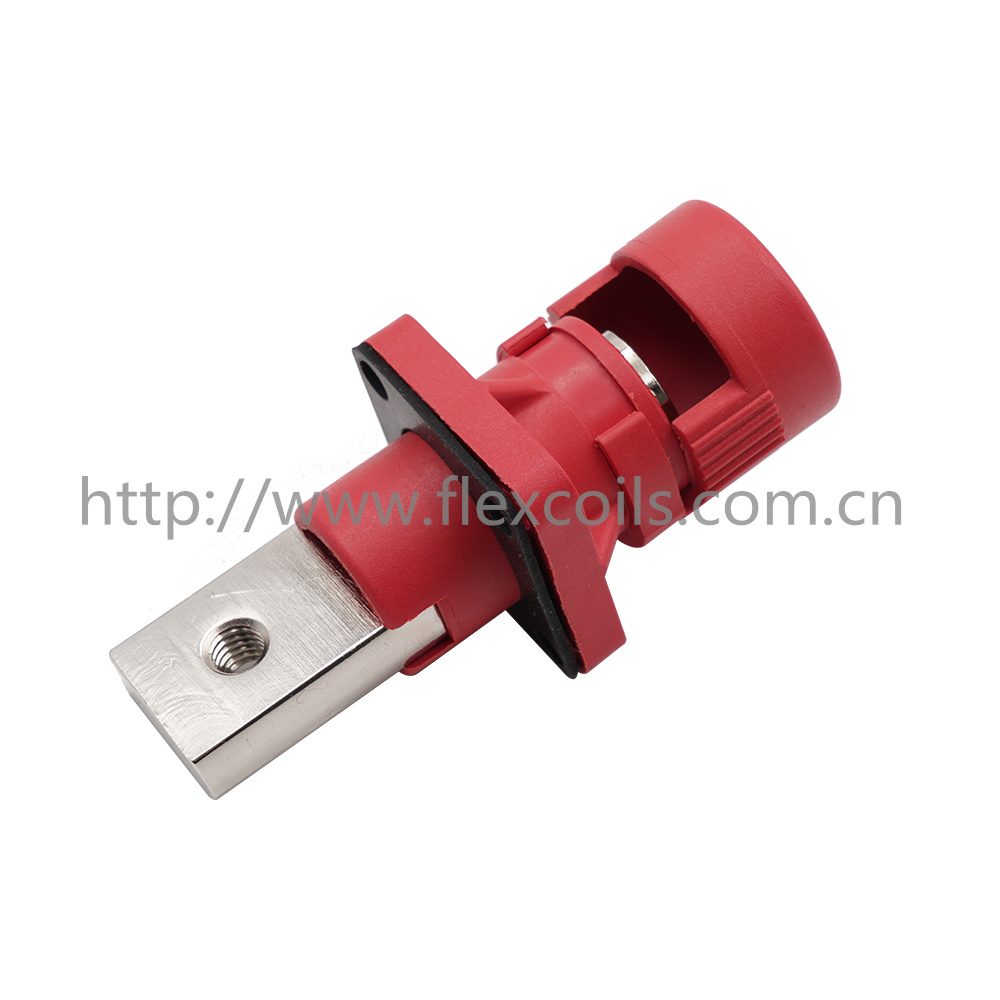

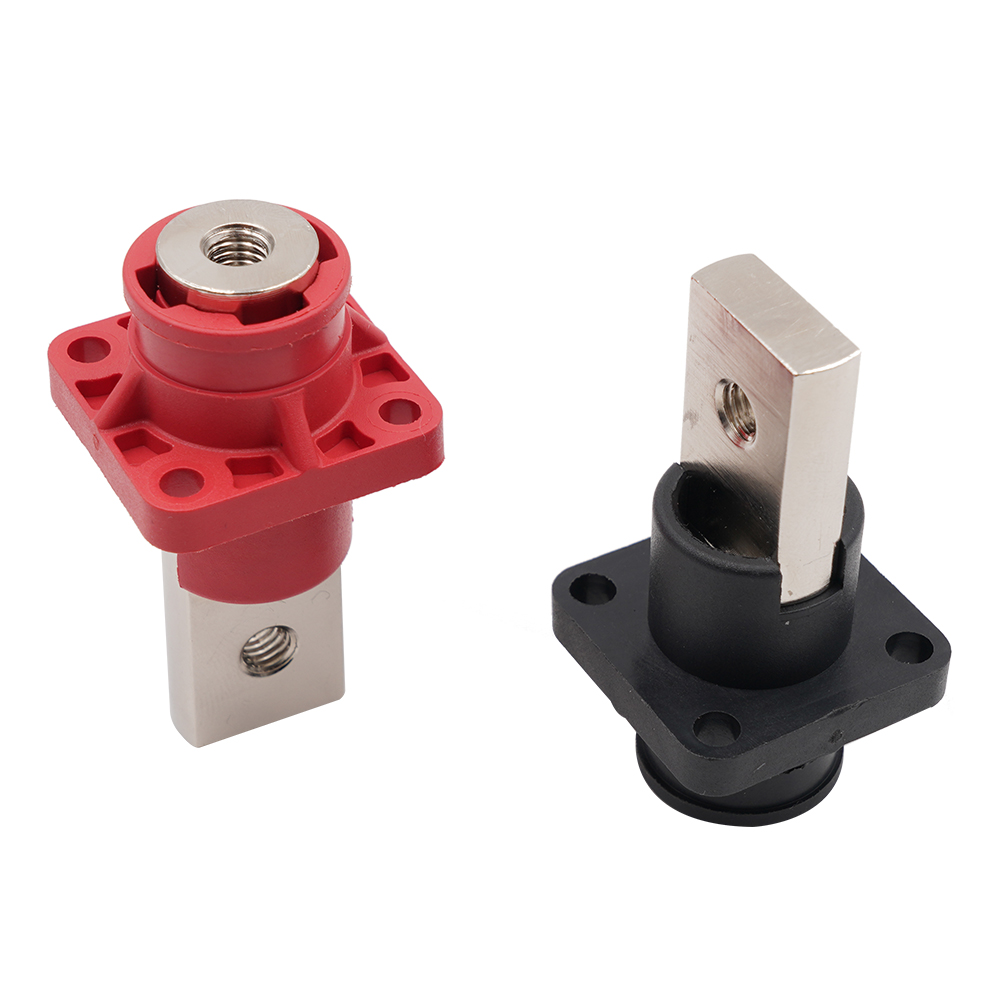

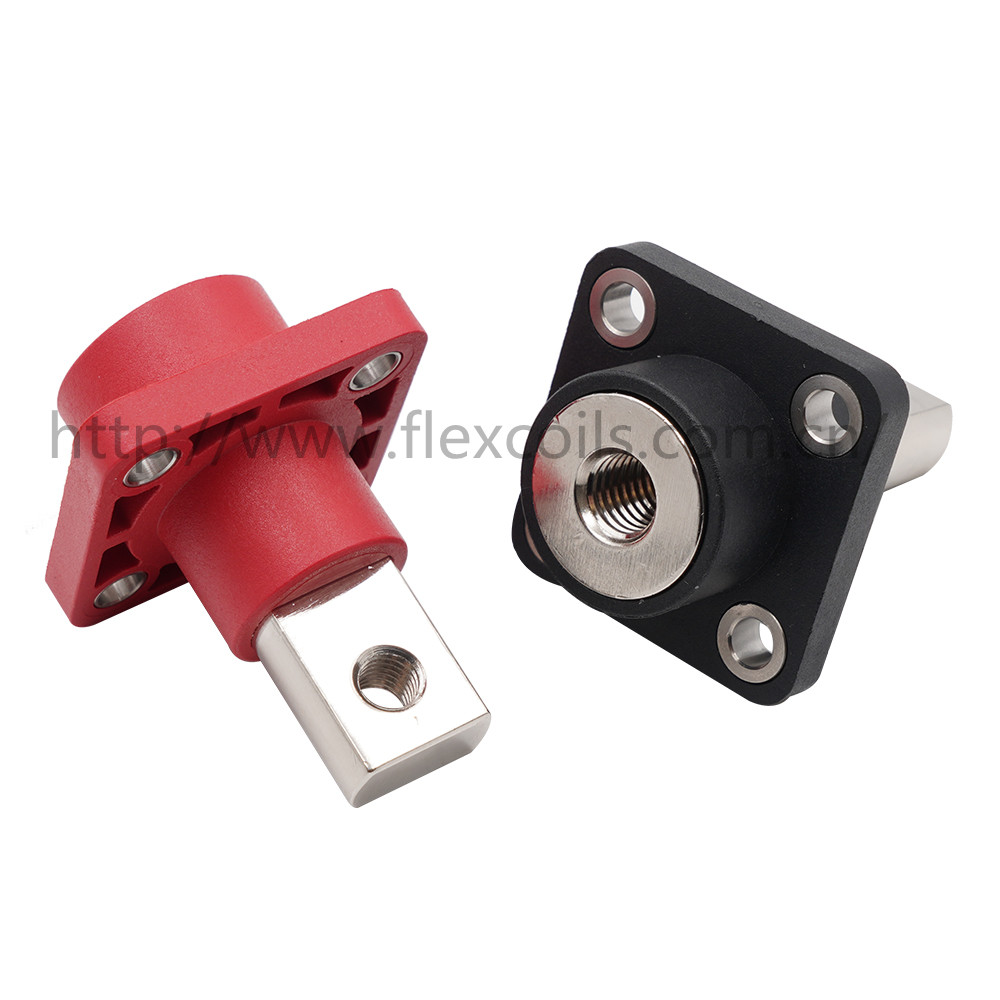

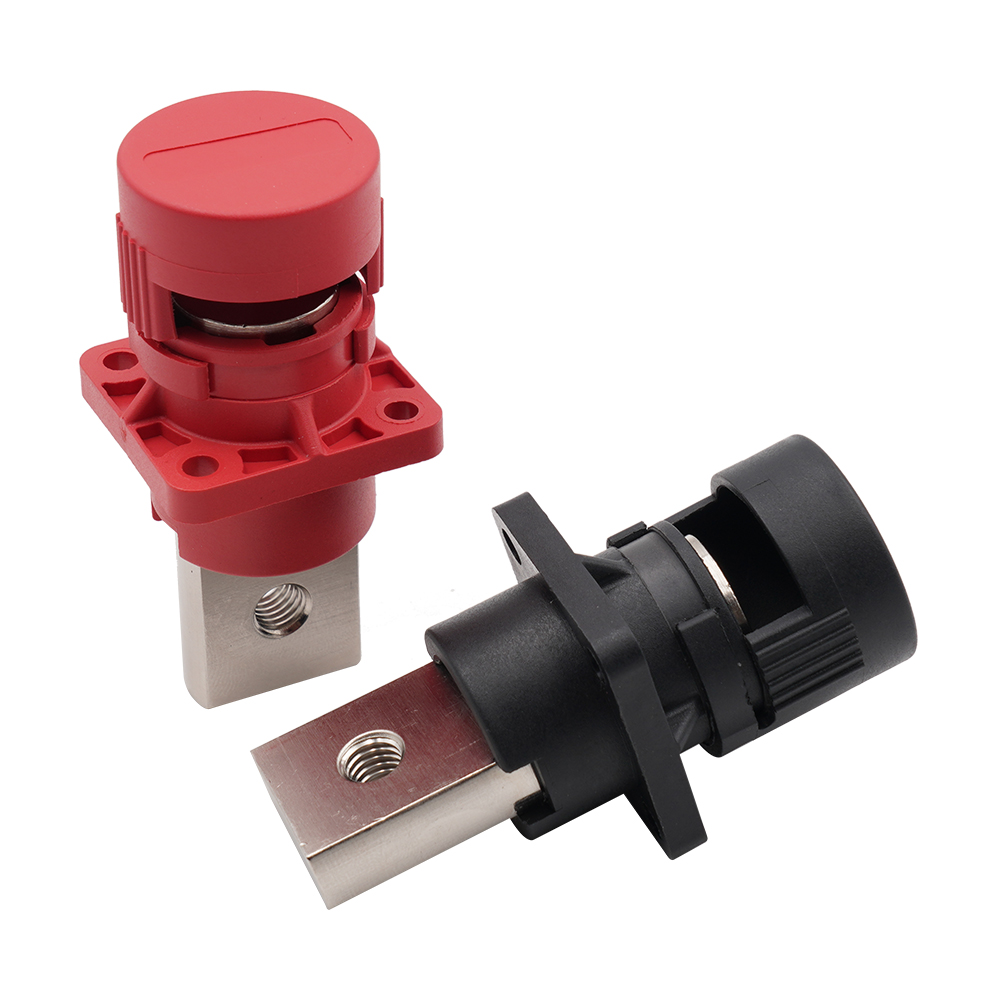

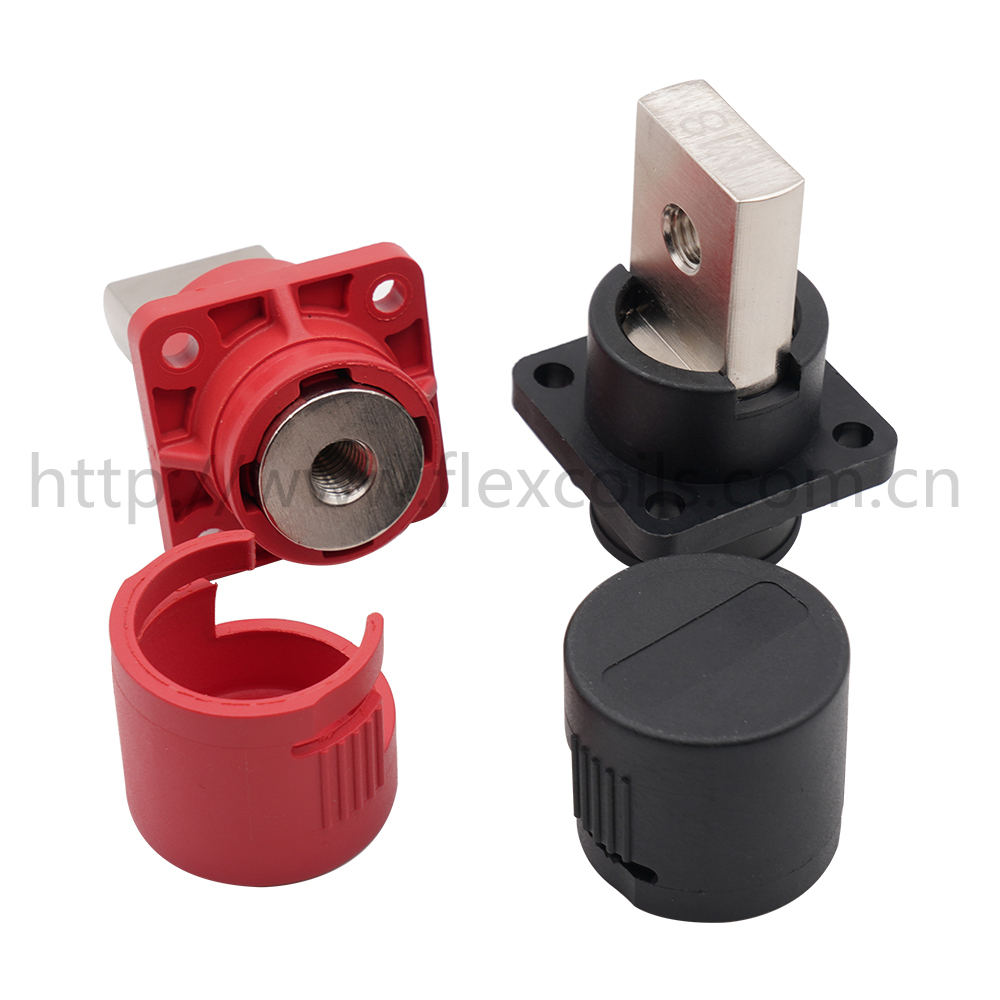

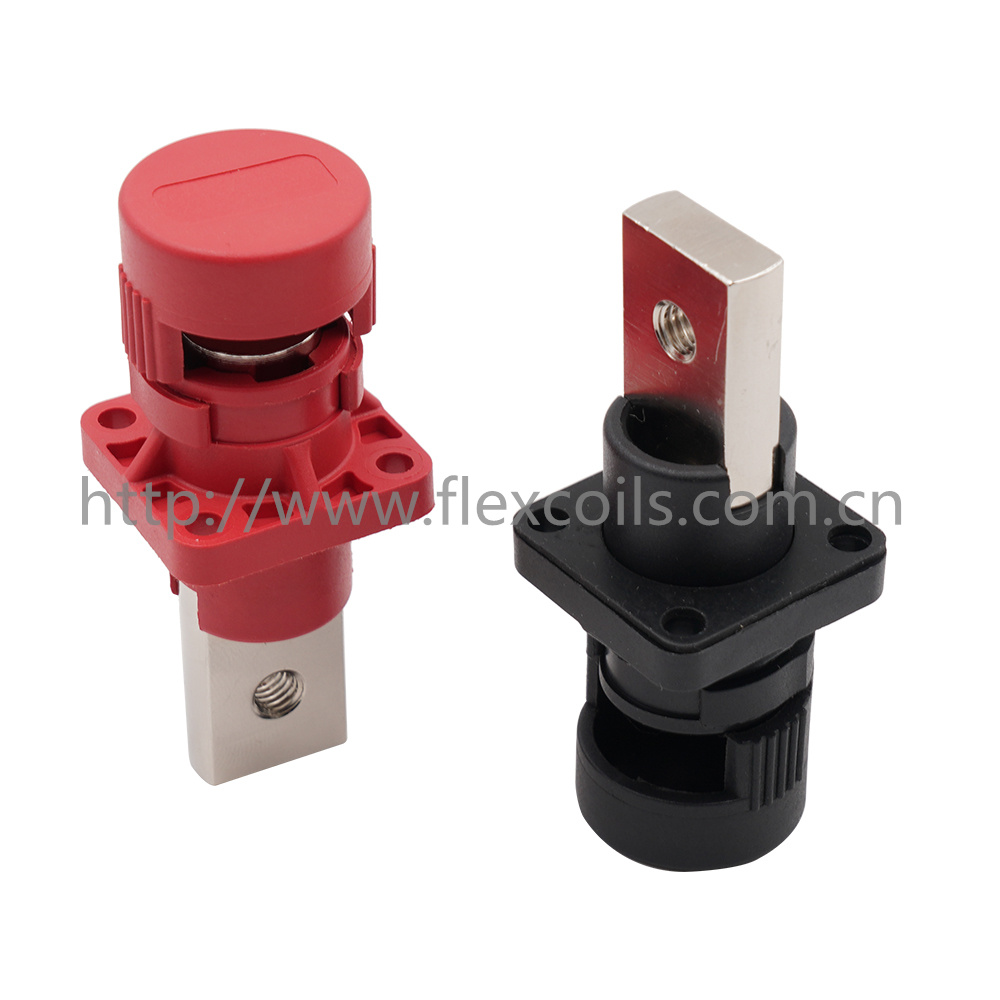

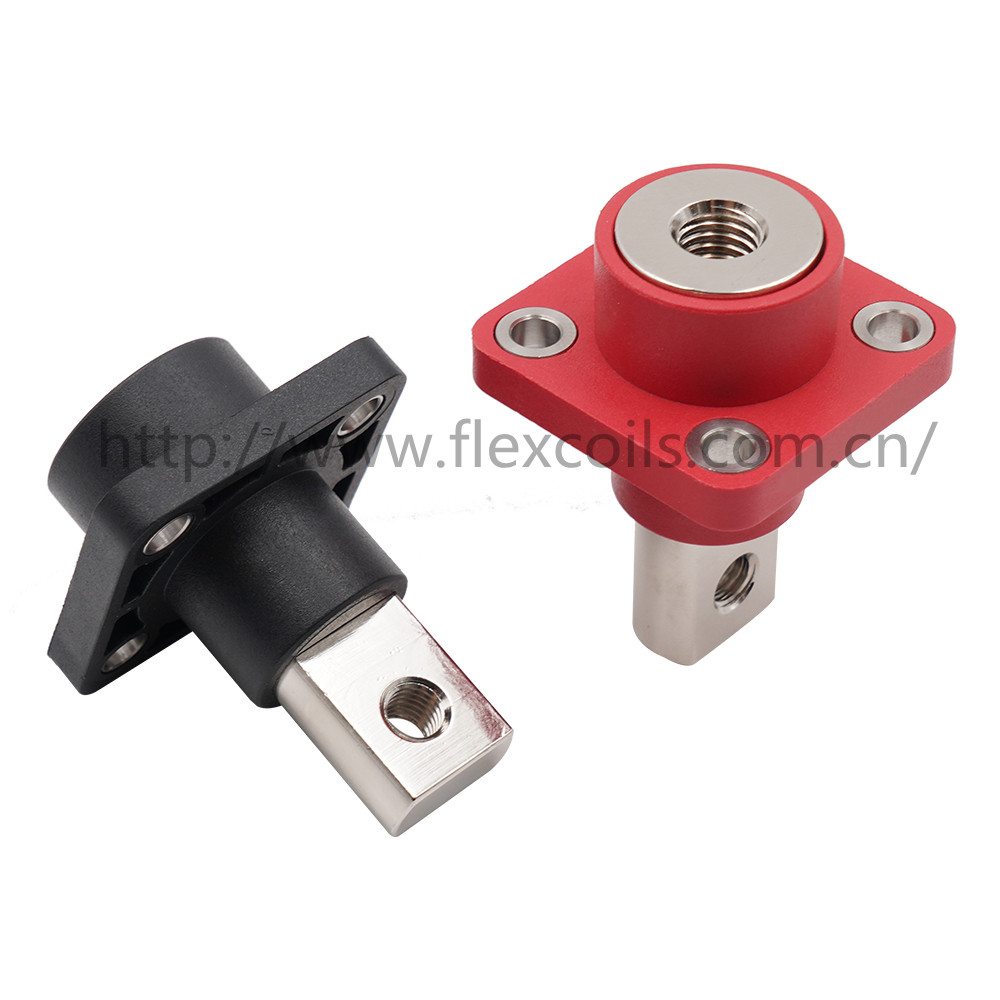

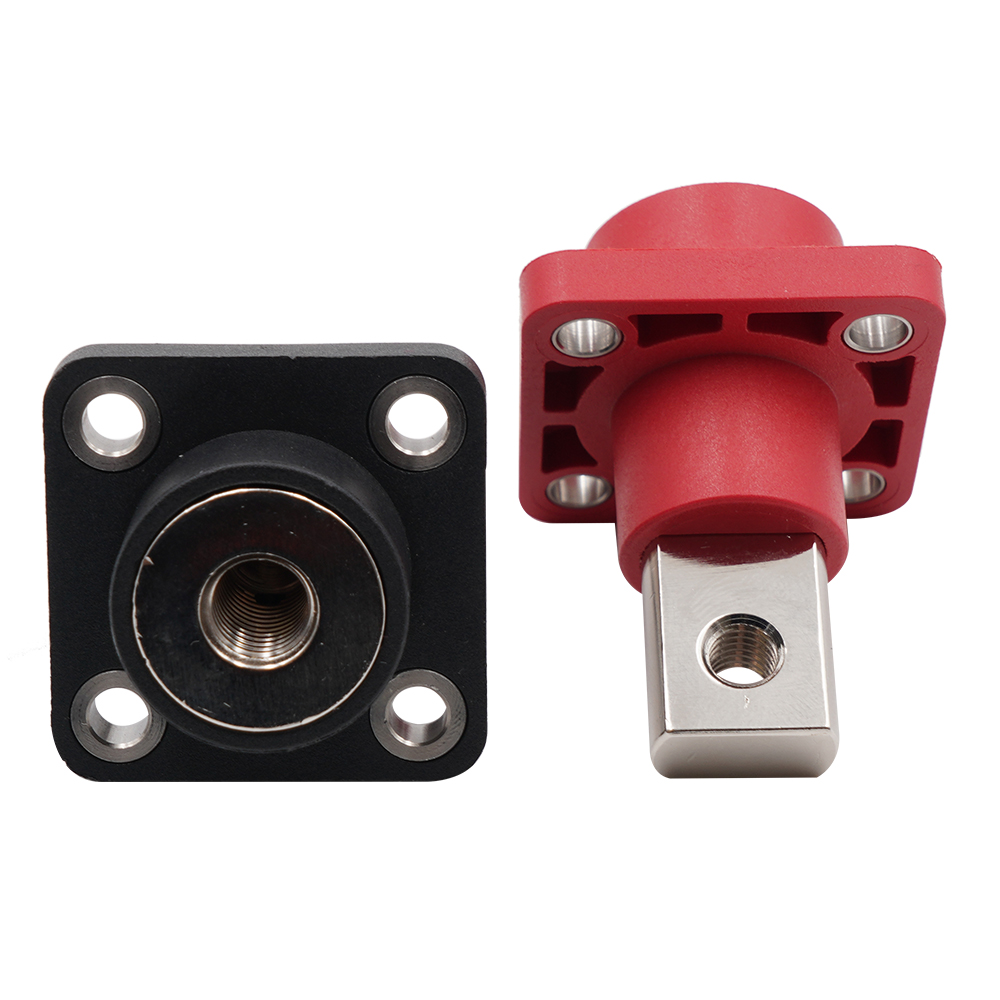

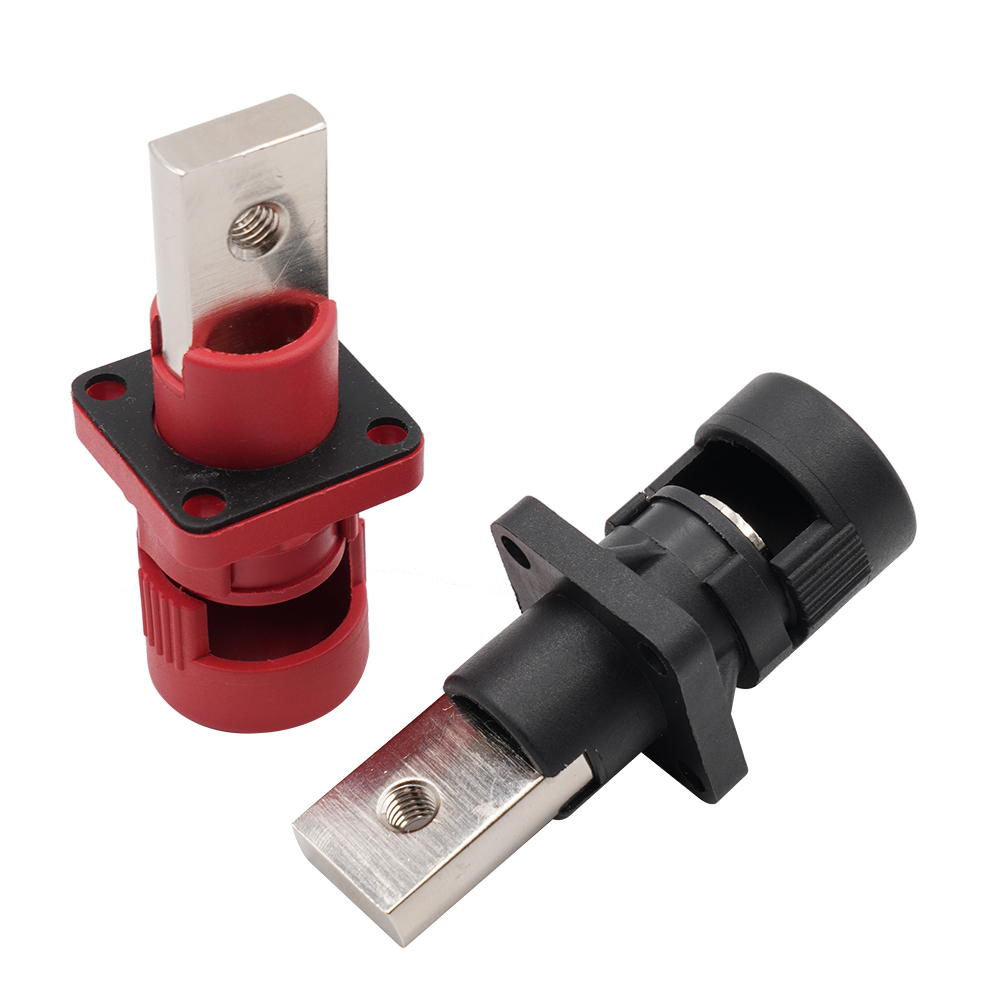

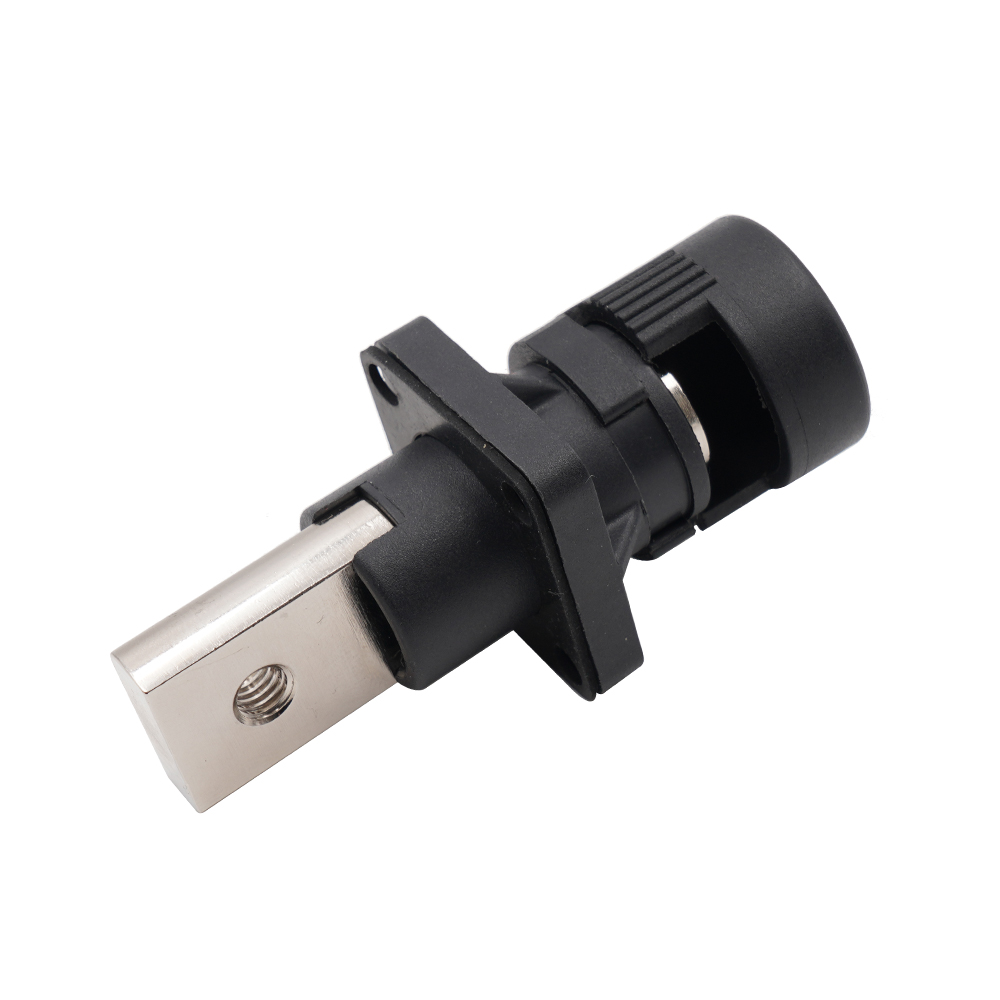

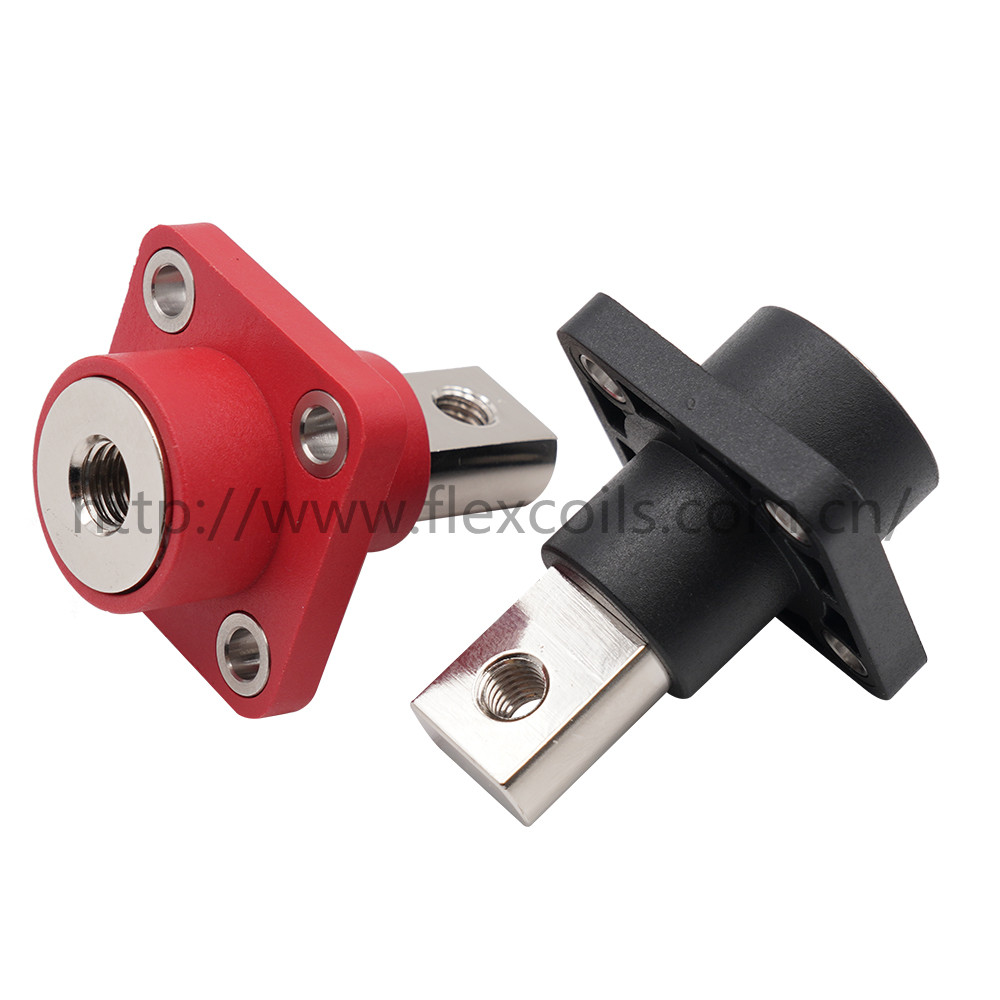

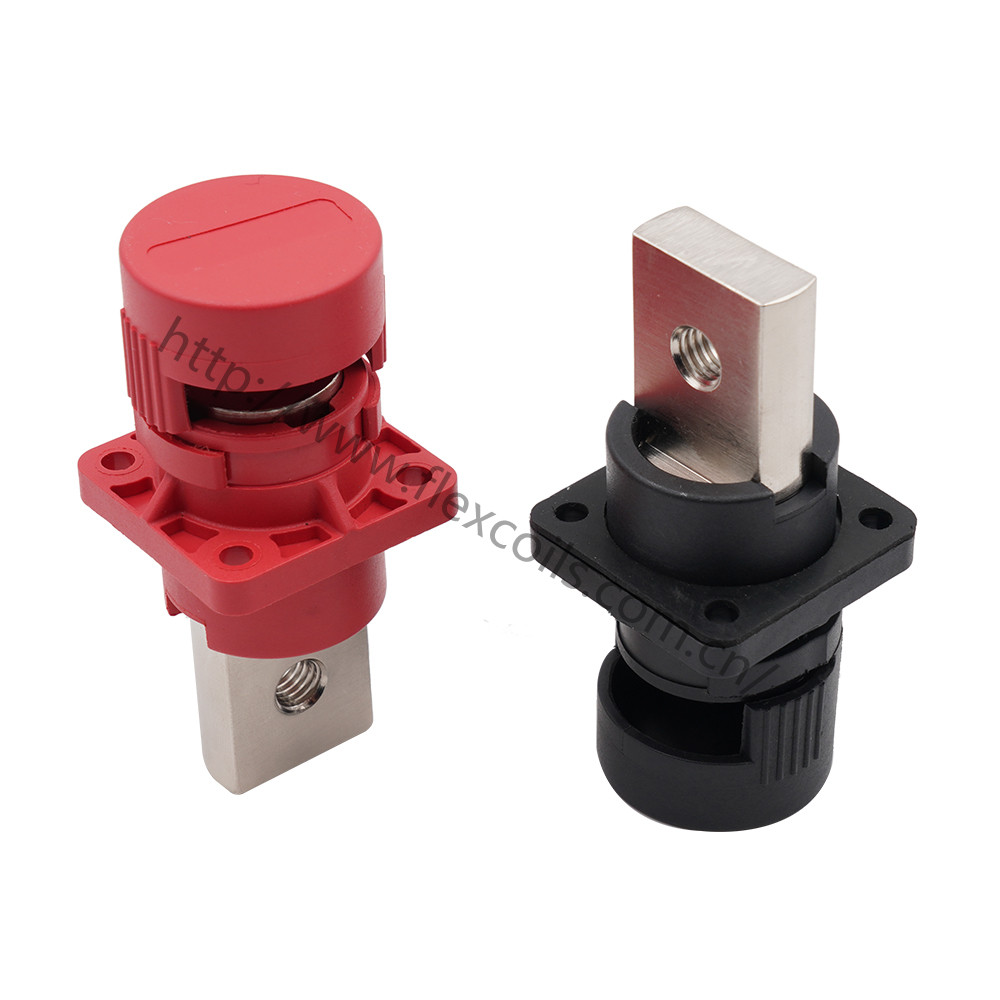

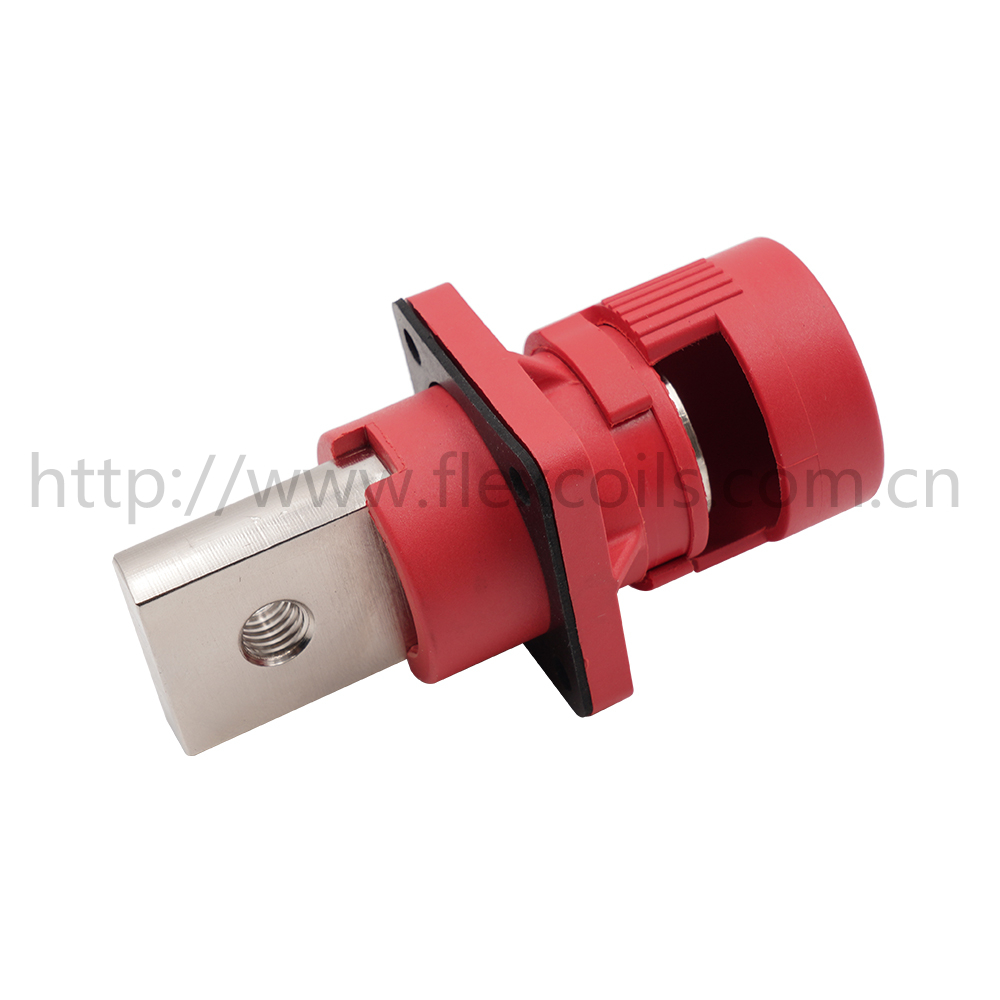

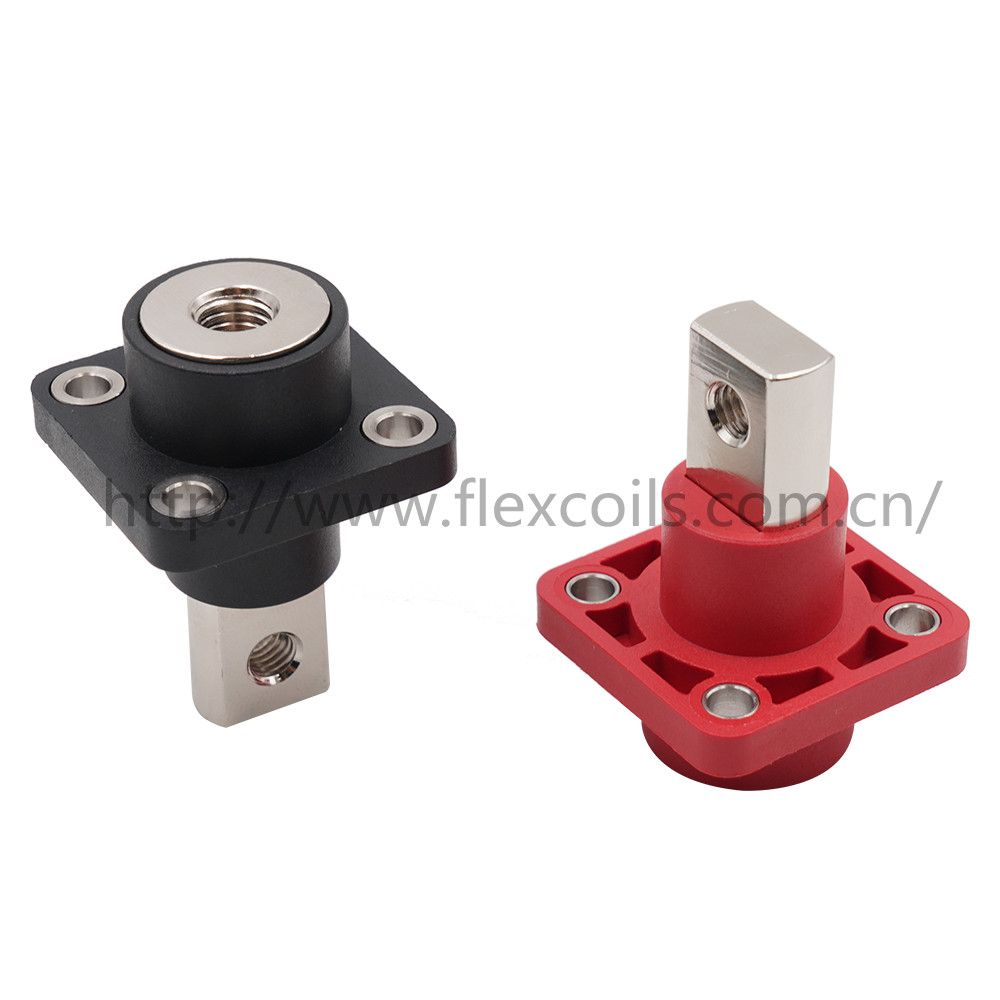

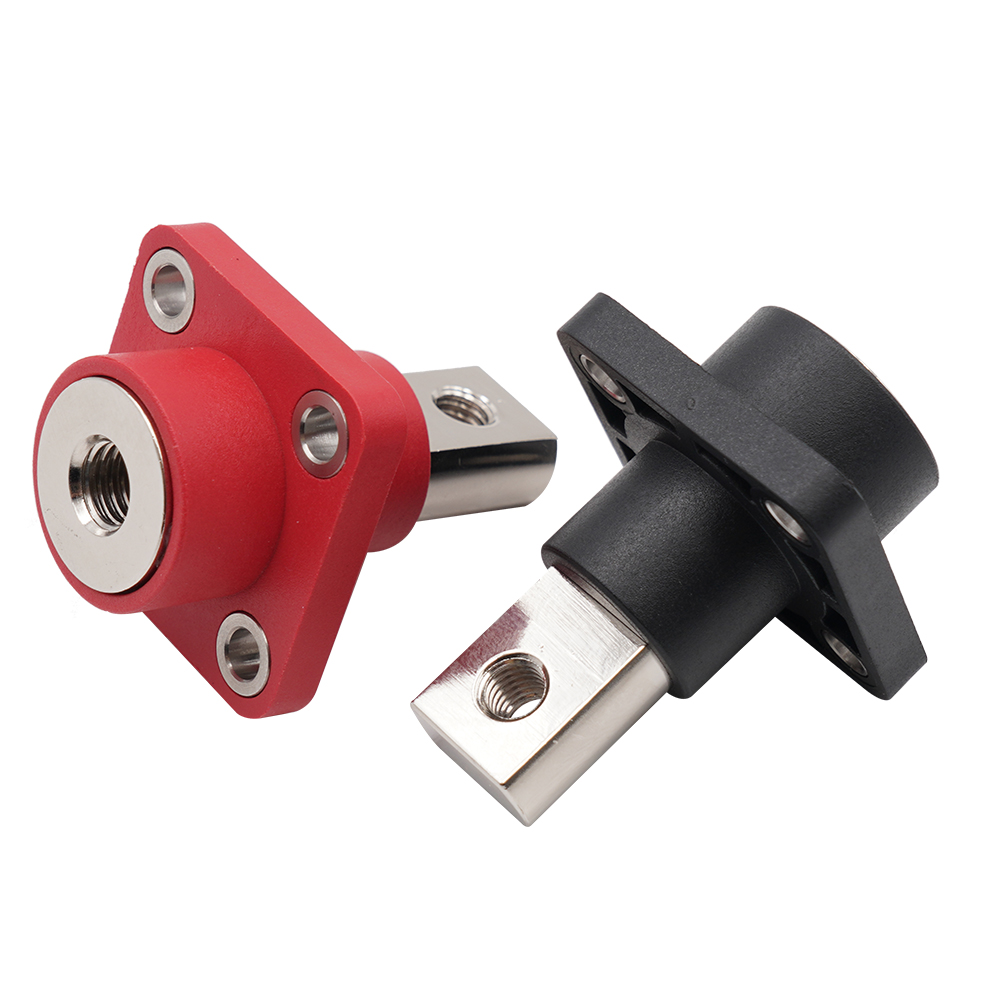

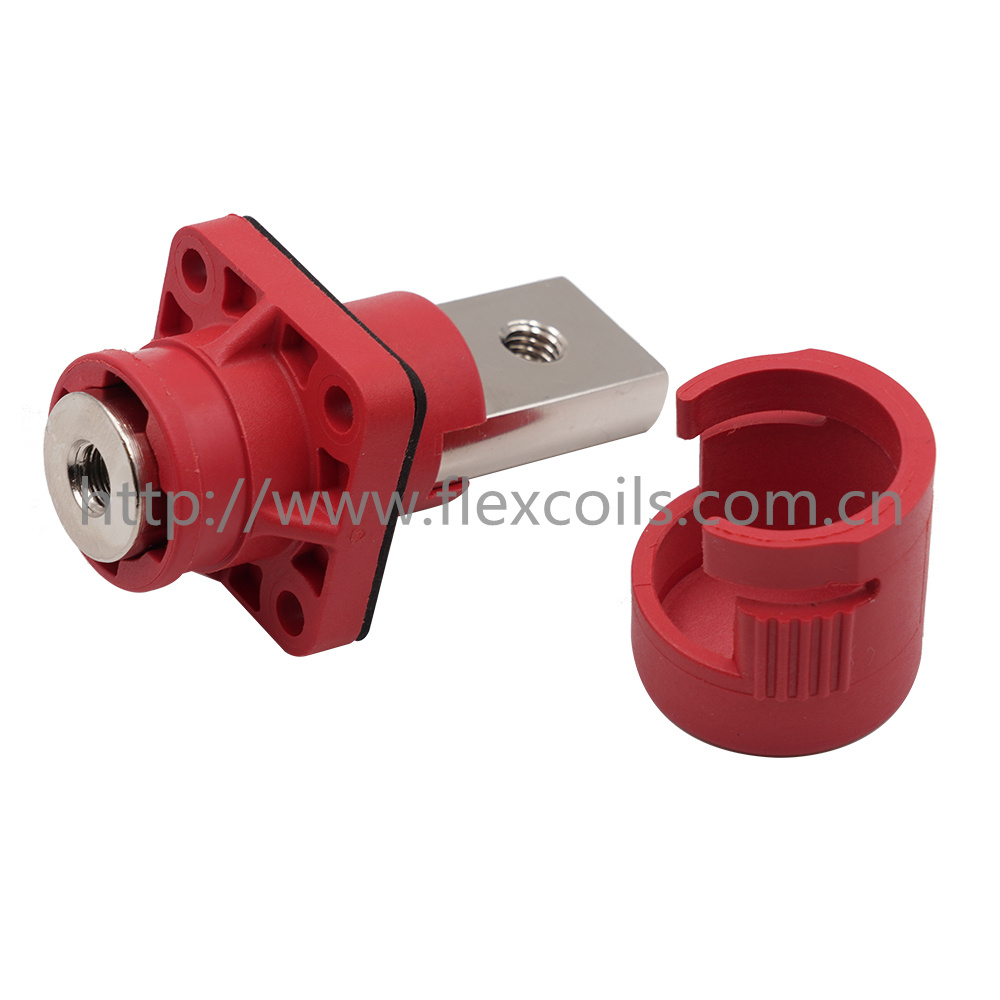

Gallery
Key Features
Secure bulkhead power feedthrough
Designed to transfer high-current DC power through panels while maintaining enclosure integrity.
High mechanical strength for heavy cables
Stud-based connections support stable tightening torque and long-term mechanical reliability.
IP67 waterproof protection
Suitable for outdoor cabinets and environments exposed to moisture or dust.
Corrosion-resistant conductor design
Nickel-plated copper improves durability and electrical stability over time.

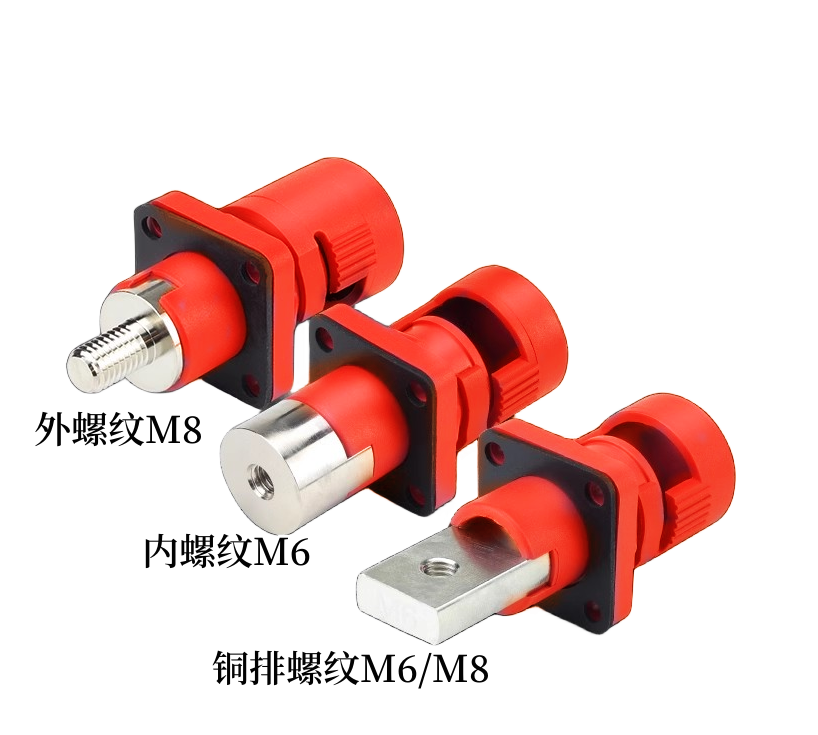

Multiple thread options
Available with M6, M8, and M10 studs to match different system requirements.
Product Performance
Specifications
| Category | Item | Specification |
| Electrical | Rated Current | 120A–400A (model dependent) |
| Electrical | Rated Voltage | Up to 1500V DC |
| Electrical | Dielectric Withstanding Voltage | 3000V DC |
| Mechanical | Mechanical Life | ≥ 500 cycles |
| Mechanical | Mounting Type | Through-wall / bulkhead |
| Mechanical | Thread Size | M6 / M8 / M10 |
| Materials | Conductor | Pure copper, nickel-plated |
| Housing / Insulator | Housing Material | Flame-retardant PA |
| Housing / Insulator | Flammability | UL94-V0 |
| Sealing Parts | Protection Level | IP67 |
| Environmental | Operating Temperature | -40°C to +125°C |
| Environmental | Salt Spray | 5% NaCl, 48 hours |
Function
Application
Energy storage cabinets and containers
Battery enclosures and power distribution units
Industrial power control cabinets
EV and low-speed electric vehicle battery systems
